RS-550 field vane shear test
Specification :
- Mechanical Vane Shear
- Maximum Su : 2Kg/ cm2
- Sensitivity : 0.05kg/ cm2 per division
- 10 pc rod @ 1 meter
- Vane size : 30mm x 60mm , 50mm x 100mm, 65mm x 130mm
- Dimension : 30 diameter & height 35cm
- Gross weight : 55 Kg .
hubungi 082221111131
Field Cbr Test Set
|
Test Ini Dimaksudkan Untuk Memeriksa Nilai Cbr Langsung Ditempat Atau Dilokasi Pemadatan
RS-260, FIELD CBR TEST SET
ASTM D-4429
For determining CBR value on place.
RS-261 Mechanical Jack
" Cast alumunium housing, 5 tons cap,
hand operated, 2 speeds. "
Consist of :
RS-261.1 Mechanical Jack 1 Pc
5 tons capacity
RS-261.2 Swivel Hand 1 Pc
Cast alumunium
RS-262 Field Penetration Piston
Machined steel, galvanized, adjustable height
Consist of :
RS-262.1 Penetration Piston 1 Pc
Machined steel, galvanized, 1.954 " piston dia.
RS-262.1 Extension Set 1 Set
" Machined steel, galvanized, 5 cm, 10 cm, 20 cm
and 60 cm, provided with connecting adaptor "
RS-263 Reference Beam 1 Set
Steel pipe, 160 cm span
RS-264 Circular Surchange Weight 1 Pc
Machined steel, galvanized, 10 " dia., 10 lbs weight
RS-265 Slotted Surchange Weight 1 Pc
Machined steel, galvanized, 8 " dia., 10 lbs weight
RS-266 Slotted Surchange Weight 1 Pc
Machined steel, galvanized, 8.5 " dia., 20 lbs weight
RG-101.5 Proving Ring 1 Set
2.000 lbs capacity
RG-101.7 Proving Ring 1 Set
10.000 lbs capacity
RG-137 Dial Indicator 1 Pc
Range 30 x 0.001 mm
RG-140 Dial Holder 1 Pc
Magnetic
Dimension ( l x w x h) : 140 x 35 x 35 cm
Gross Weight : 75 kg
Local Product (made in Indonesia)
include Calibration by KAN

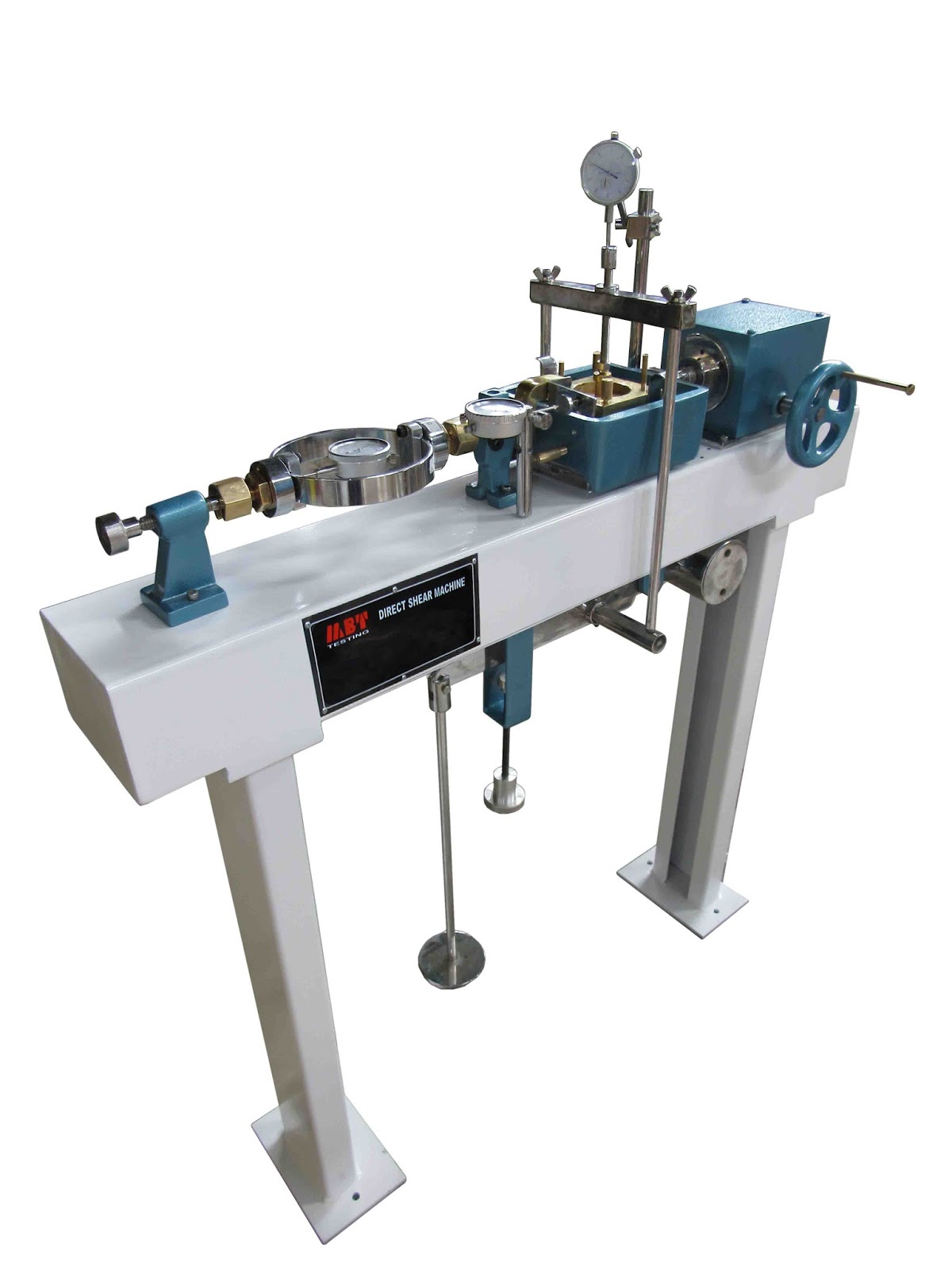

Direct Shear Test Set
(item code : RS-525)
|
ASTM D-3080
|
AASHTO T-236
| ||
For determining shearing resistance of soil sample.
| |||
RS-526
|
Loading MAchine
| ||
Consist of :
| |||
RS-526.1
|
Frame
|
Welded steel frame hand operated
|
1 Pc
|
RS-526.2
|
Loading Hanger
|
Machined steel, galvanized, supplied without load
|
2 Pc
|
RS-527
|
Shear Box
|
Cast alumunium box, 63.5 mm sample dia., porous stone, loading cap.
|
1 Set
|
RS-523
|
Loads
|
Slotted, machined steel, galvanized
| |
Consist of :
| |||
RS-523.1
|
Load
|
3167 gr weight
|
2 Pcs
|
RS-523.2
|
Load
|
6334 gr weight
|
1 Pc
|
RS-524
|
Sample Tube
|
Machine steel, 63.5 mm dia., galvanized, with extruder
|
1 Set
|
RG-101.1
|
Proving Ring
|
100 kg capacity
|
1 Pc
|
RG-135
|
Dial Indicator
|
Range 10.0 mm x 0.01 mm
|
1 Pc
|
RG-136
|
Dial Indicator
|
Range 20.0 mm x 0.01 mm
|
1 Pc
|
RG-840
|
Wire Saw
|
10 cm length approx.
|
1 Pc
|
Also required,
but not part of this set:
RS-450Moisture Content Test Set
RG-521 Wash Bottle
RG-700 Stop Watch
RG-710 Vernier Caliper
RG-820 Spatula
|
Jual Alat Percentage Refusal Density
Percentage Refusal Density
Percentage Refusal Density / PRD, is defined as ratio of the initial dried density of the sample to the final density ( refusal density) expressed a percentage.
The sample bulk density is determined by weighing in air and water. It is then heated in a split mould and compacted to refusal using a vibrating hammer. The final density is obtained by weighing in air and water.
Main Unit:
PRD Split Mould and Baseplate
Accessories:
Vibrating Hammer
Small Tamping Foot
Large Tamping Foot
300mm Shank
Air Permeability of Porland Cement ASTM C-204 AASHTO T-153
Untuk menentukan kehalusan semen porland oleh permeabilitas udara.
- 101 Stand dipoles kayu 1 Pc
- 102 U-Tube Manometer Glass Tabung dengan katup 1 Pc
-103 Cell Stainless Permeabilitas Steel 1 Pc
-104 Perforated Disc Non
korosi logam 1 Pc
- 105 Plunger Stainless steel 1 Pc
- 107 Solusi Bursa Dibutylphtalate 0, 25 Ltr
- 108 Filter Paper Type 1, grade B 1 Box
- 473 Saluran Glass 1 Pc
